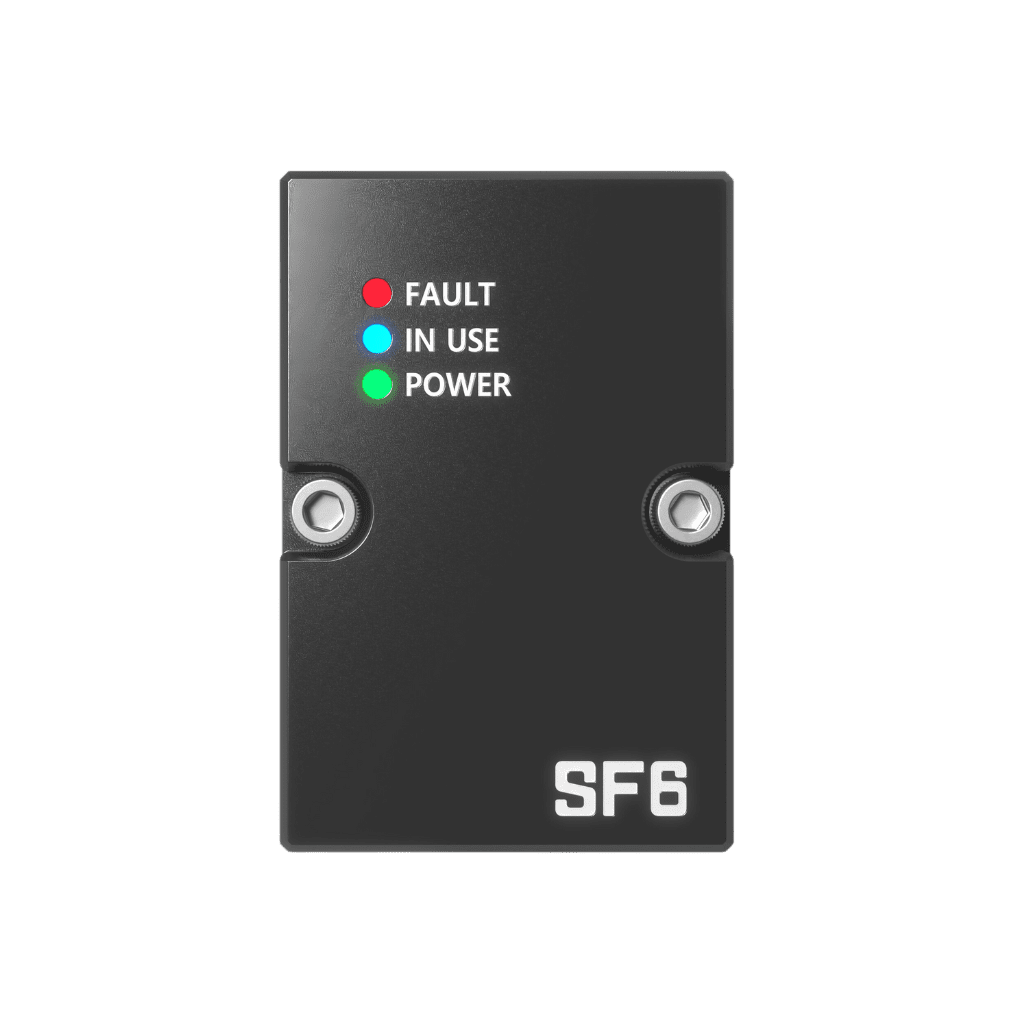

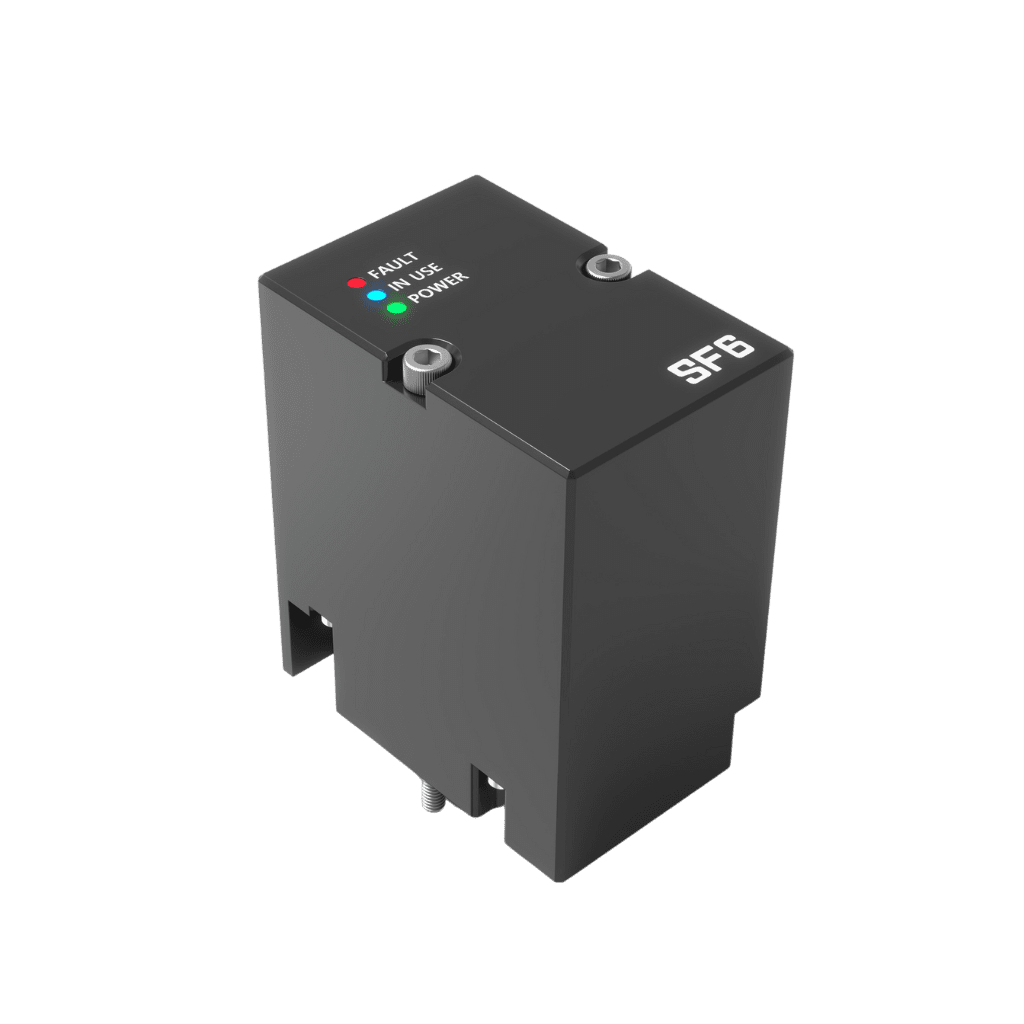

Sensor modules for FLEX – Modular SF6 Analyzer. Comes With 3rd Party NVLAP Accredited Laboratory Calibration Report . A return label will be included with each shipment to recycle old modules.
Typically Ships: 1-2 Weeks
Price range: $1,320.00 through $2,640.00
When your device needs calibration, sensor modules are sent to swap in, and you have no down time as a result.
Measurements on SF6, SO2, and moisture that you can trust. Advanced sensors coupled high purity components ensure reliability for years to come.
The simplified touch screen interface makes operation painless. A high contrast display allows for use in the brightest environments.
The FLEX is the first SF6 analyzer that can be quickly calibrated by the user thanks to our fast swapping sensor modules.
Step 1: Loosen module bolts, pull out old module
Step 2: Put in new module, tighten botls
Simple as that.
GasQuip is the name electrical transmission and distribution professionals trust for gas analysis, thanks to our products’ reliability, technical standards, and customer support. We design our equipment to meet the needs of the people who will actually be using it, and carefully consider the features that our customer’s want and need.
| GENERAL | |
|---|---|
| Dimensions | 27.4 × 15.1 × 11.8″ |
| Weight | 50 Lbs |
| Inlet Pressure | 5-350 PSI |
| Touch Panel Size | 7″ Sunlight Readable |
| Sampling Time | ~ 7 Minutes |
| Power Supply | 120 / 240 V |
| Data Export | USB Port |
| Warranty | Standard 12 Months |
| STANDARD EQUIPMENET |
|---|
| 6m sampling hose, DN8 & D20 Adapters |
| Power Cable |
| USB Stick for Data Export |
| Operating Manual |
| UNIQUE FUNCTIONS | |
|---|---|
| Automatic Pumpback | Hose Evacuation |
| External Gas Storage Port | Set Pass/Fail Thresholds |
| Quick Swap Sensor Modules | Calibration Interval Tracking |
| SENSORS MODULES | ||||||
|---|---|---|---|---|---|---|
| | H2O | SF6 | SO2 | CF4* | N2* | O2 (Dry Air) |
| Sensor Type | Heated Capacitive Polymer | Infrared | Electrochemical | N/A | N/A | Lead-Free Electrochemical |
| Accuracy | ± 2 °C | ± 0.5 % | ± 2 % | ± 1 % | ± 0.5 % | ± 0.5% |
| Calibration Interval | 1 Year | 2 Years | 2 Year | 2 Years | 2 Years | 2 Years |
| Units | DP atm (°C/°F/K) DP Vessel (°C/°F/K) PPMw PPMv | % SF6 | PPMv | % CF4 | % N2 | % O2 |
| Range | -50°C atm to +20°C atm | 0-100% | 0-500 PPMv | 0.56-85% | 0-100% | 0-25% |
| Gas Type / Mixtures it | SF6 | SF6 | SF6 | SF6/CF4 | SF6/N2 | O2/N2 |
| * – CF4 value determined using * – N2 value determined using |
