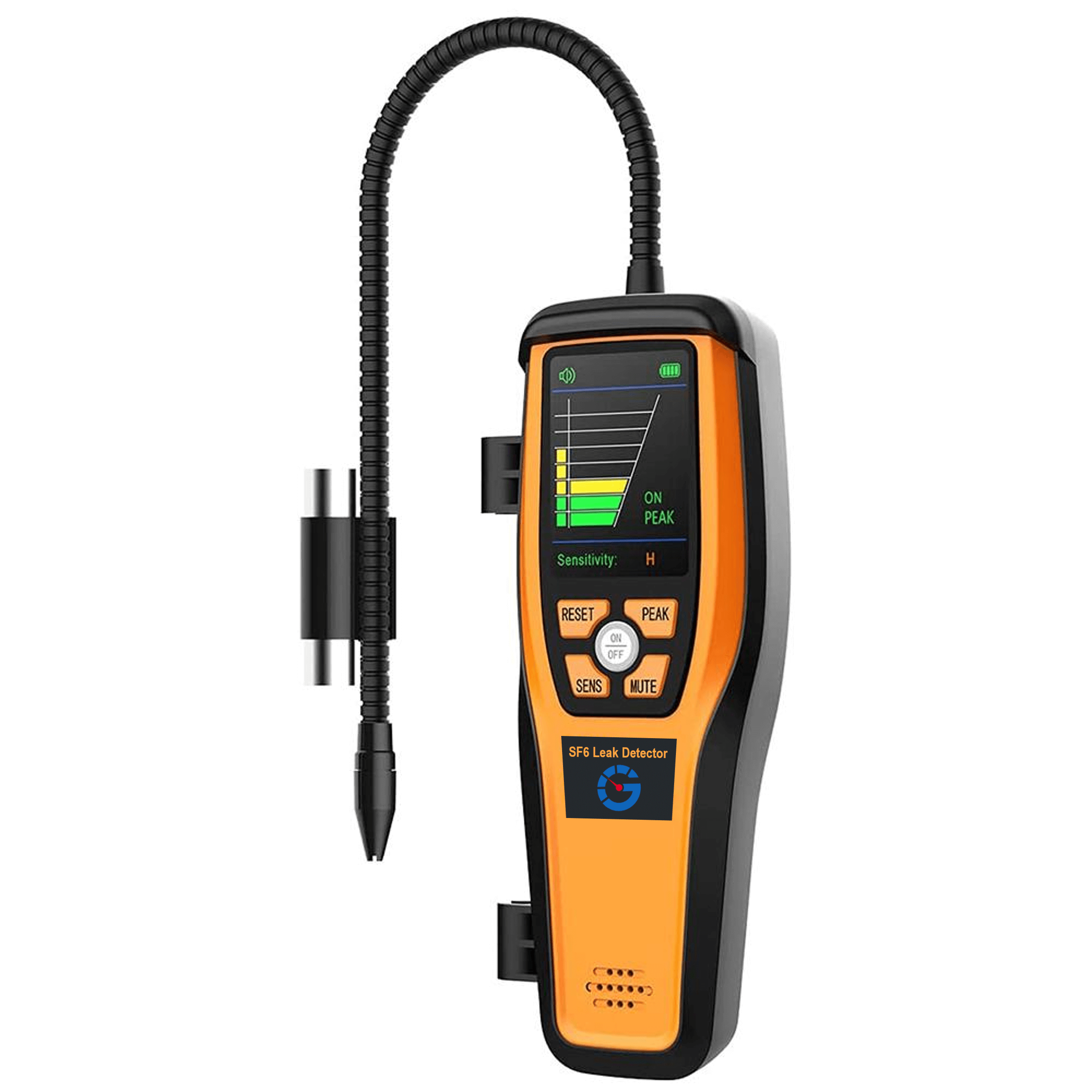

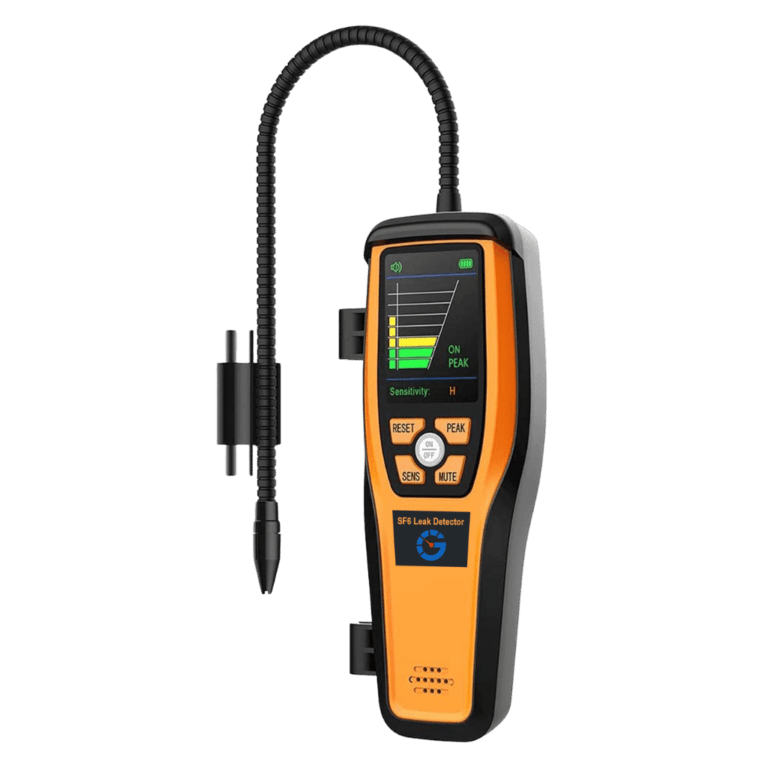

The GasQuip Quicker Sniffer is a premium handheld SF₆ leak detector engineered for precision and reliability. Equipped with a high-performance infrared sensor, it delivers accurate detection of even the smallest SF₆ leaks—outperforming conventional detectors in harsh environments.
Key features include:
Multi-level sensitivity settings for pinpoint accuracy
Extended rechargeable battery for all-day operation
10-year sensor lifespan for long-term dependability
Trusted by utilities worldwide, it’s the ideal solution for professionals in electrical transmission and distribution, manufacturing, and industrial processing.
Typically Ships: Same Day
$799.99
A robust infrared sensor performs better in windy & dusty environments when compared to a traditional heated diode or corona detector.
Start the detector out on high sensitivity to locate the general area where the leak might be, and lower the sensitivity as you get closer to pinpoint the exact area.
Built-in rechargeable lithium ion battery allows for 6 hours continuous use.
GasQuip is the name electrical transmission and distribution professionals trust for leak detection, thanks to our products’ reliability, technical standards, and ergonomics for all-day use in the field.
“It’s a straightforward tool, easy to use. I have used it for a few times, it’s been very accurate so far. I like its audio and visual alarms. Satisfied with this purchase.”
“We outfitted all of our trucks with this unit. In some instances, we’ve found SF6 leaks that our expensive camera could not.
This is the only leak detector that we own that doesn’t give false positives due to windy conditions. It’s been a game changer for our maintenance group.
| GENERAL | |
|---|---|
| Measurement Principle | Spectrum Absorption |
| Voltage Supply | Rechargeable Lithium Ion |
| Sensor Life | 10 Years |
| Operating Temperature | -10°C to 52°C (14°F to 125.6 °F) |
| Device + Case Weight | 3 LBS |
| Dimensions | 13″ x 10″ x 2.5″ |
| Gases Detected | SF6 Gas, SF6 Gas Alternatives, Halogenated Coolants |
| SENSOR SPECIFICATIONS | |
|---|---|
| Measuring Range | 0-1000 PPMV |
| Detectable Leak Rate | 0.13 OZ/YR |
| Sensitivity | 5 PPMV |
| Response Time | <1 Second |
| Alarm Type | Audible & Visual |
12 Month Standard Warranty
GasQuip warrants the products it manufactures or distributes to be free of defects in material and workmanship under normal use and service when operated within the specified design limitations for a period of 12 months from date of initial shipment. Under this Warranty, GasQuip will, at its discretion, repair or replace any component that upon examination by GasQuip or its duly authorized representatives proves to be defective during the warranty period provided the system is returned to the factory for inspection and repair shipping prepaid. Improper or unauthorized maintenance, storage, repair, or alteration of any kind by personnel other than GasQuip or its duly authorized representatives may void all warranties. Warranty may also be voided for misuse, neglect, accident, corrosion, and improper installation. This Warranty is exclusive and in lieu of any and all other warranties of merchantability, fitness for a particular purpose, or any other warranty, expressed or implied, and all other liabilities and obligations on the part of GasQuip. GasQuip will not be liable for any other claims or damages, either direct, indirect, or consequential arising out of the use of its products.
The GQ-IRLD detects SF6 leaks down to a rate of 0.13 oz/year, with a sensitivity of 5 PPMV and a measuring range of 0–1000 PPMV. Response time is under 1 second, with audible and visual alarms.
Yes. The Quicker Sniffer uses an infrared (spectrum-absorption) sensor that performs reliably in windy and dusty field conditions, where traditional heated-diode and corona detectors are prone to false positives. This is one of its main advantages for substation work.
The GQ-IRLD detects SF6, SF6 gas alternatives, and halogenated refrigerants/coolants, making it usable across switchgear and other halogenated-gas applications.
The built-in rechargeable lithium-ion battery provides up to 6 hours of continuous use—enough for a full field day. The detector also offers multiple sensitivity levels: start high to locate the general leak area, then lower it to pinpoint the exact source.
The infrared sensor has a 10-year lifespan, so there is no routine sensor replacement or recurring consumable cost typical of older detector technologies. The unit carries a 12-month standard warranty.
Infrared detection like the Quicker Sniffer pinpoints leaks at a fraction of the cost of an SF6 imaging camera and, unlike cameras, is not thrown off by wind. Field users have reported finding leaks with it that their imaging cameras missed.
