Designed for SF6 gas transfer between any equipment using a DN8 self-sealing connection (the fitting standard popularized by DILO). Brass female couplings on both ends. Standard 1/4″ ID; 3/8″ ID available on request. Custom lengths available.
Typically Ships Within: 1-2 Days
Price range: $710.00 through $1,160.00
| Part Number Matrix | |||
|---|---|---|---|
| Example | TUB1145/2/ | GQ | 50 |
| | Connection Material | Manufacturer | Length in Feet |

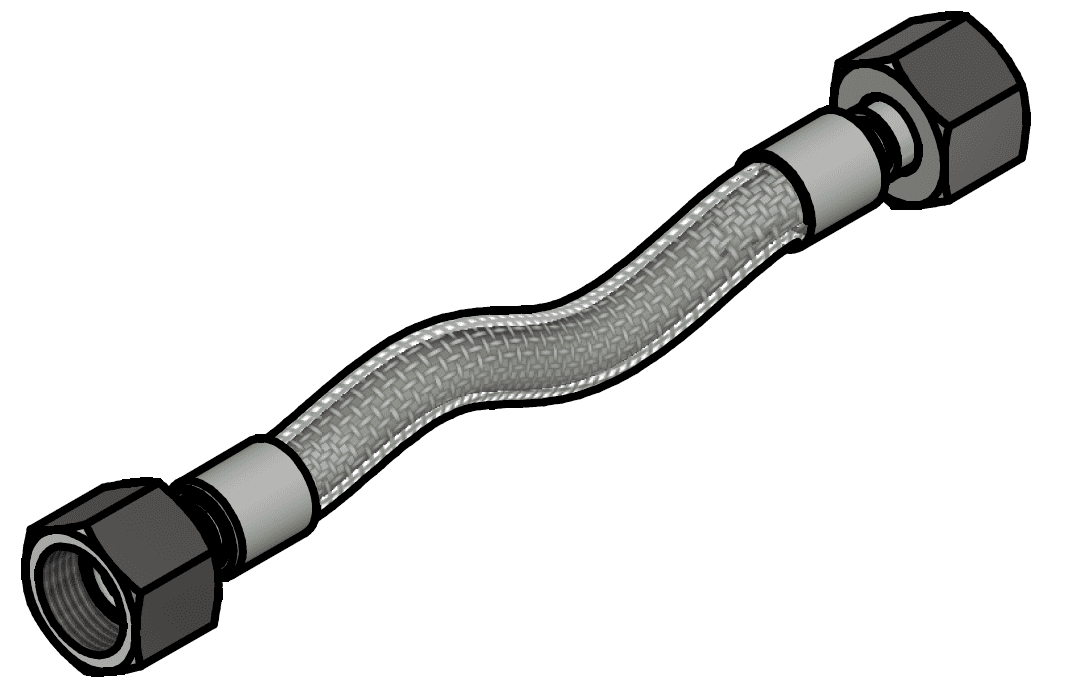

| | TUB1144/1/ = DN8 Rubber Hose TUB1184/1/ = DN8 Stainless Steel Braided PTFE TUB9092/2/ = DN20 Rubber Hose TUB8536/2/ = DN20 Stainless Steel Braided PTFE | GQ = GasQuip | Rounded to nearest foot |
| Technical Data | ||||
|---|---|---|---|---|
| Inside Diameter | Outside Diameter (inch) | Bend Radius | Max Working Pressure (PSI) | Weight (lb/ft) |
| 1/4″ | 0.70 | 2.50 | 2250 | 0.2 |

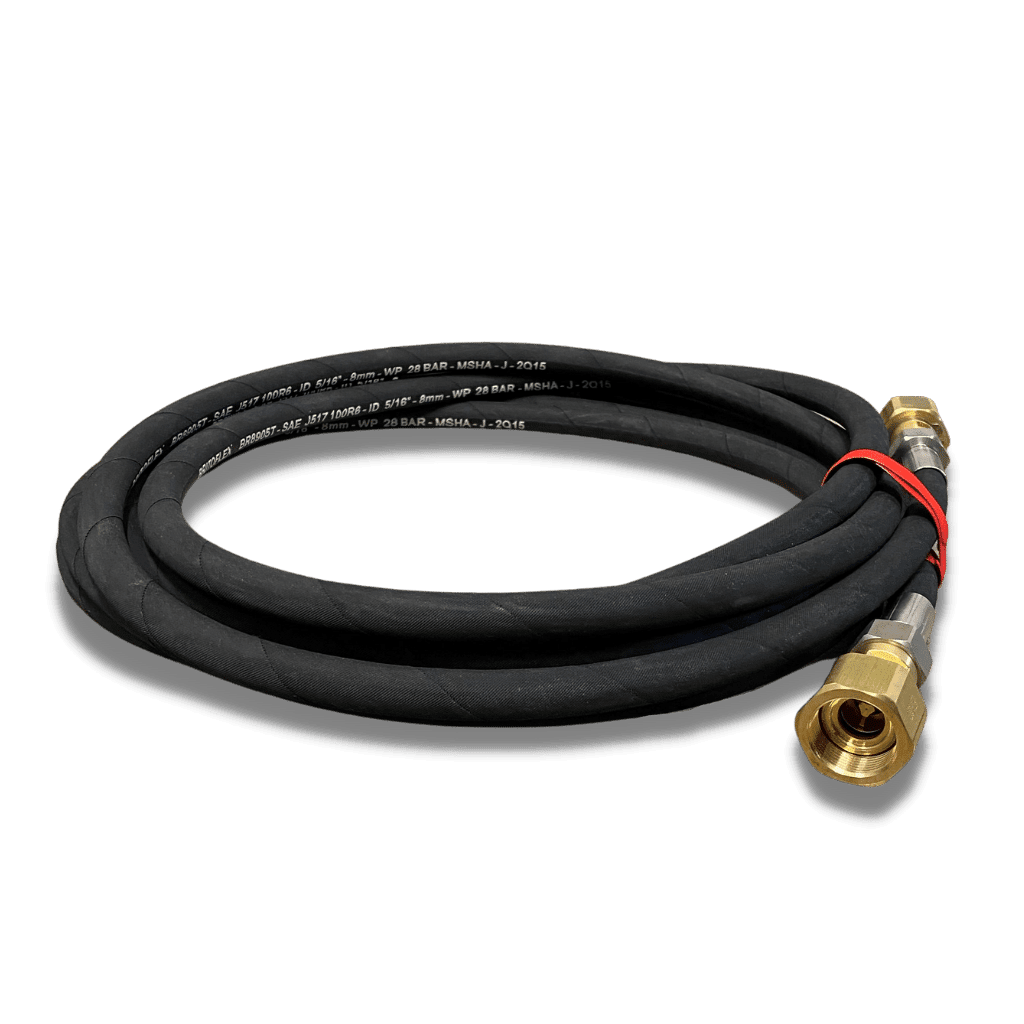

A rubber hydraulic hose is commonly used when transmitting SF6 gas. Our self sealing DN8 fittings (popularized by DILO), are precisely manufactured in Italy by Electron System MD, which we are the North American manufacture rep for.
The DN20 connection type is a very common SF6 reservoir connection in North America, found on a multitude of electrical switchgear brands.
This type of fitting is the commonly used in the field and has become an industry standard. The two sizes typically seen are DN8 & DN20. The 8 & 20 size designations are based on the ID of the fitting. These fittings work by utilizing a metal to metal seal when tightened. The tongue or raised portion can be found inside the female valve and the groove is on the male side. These types of fittings do well when vibration is present, under vacuum or positive pressure, and can remain tight under a large range of temperatures. The nice thing about these is that they cannot be over tightened and can be reused indefinitely, but the sealing surfaces must be kept clean.
