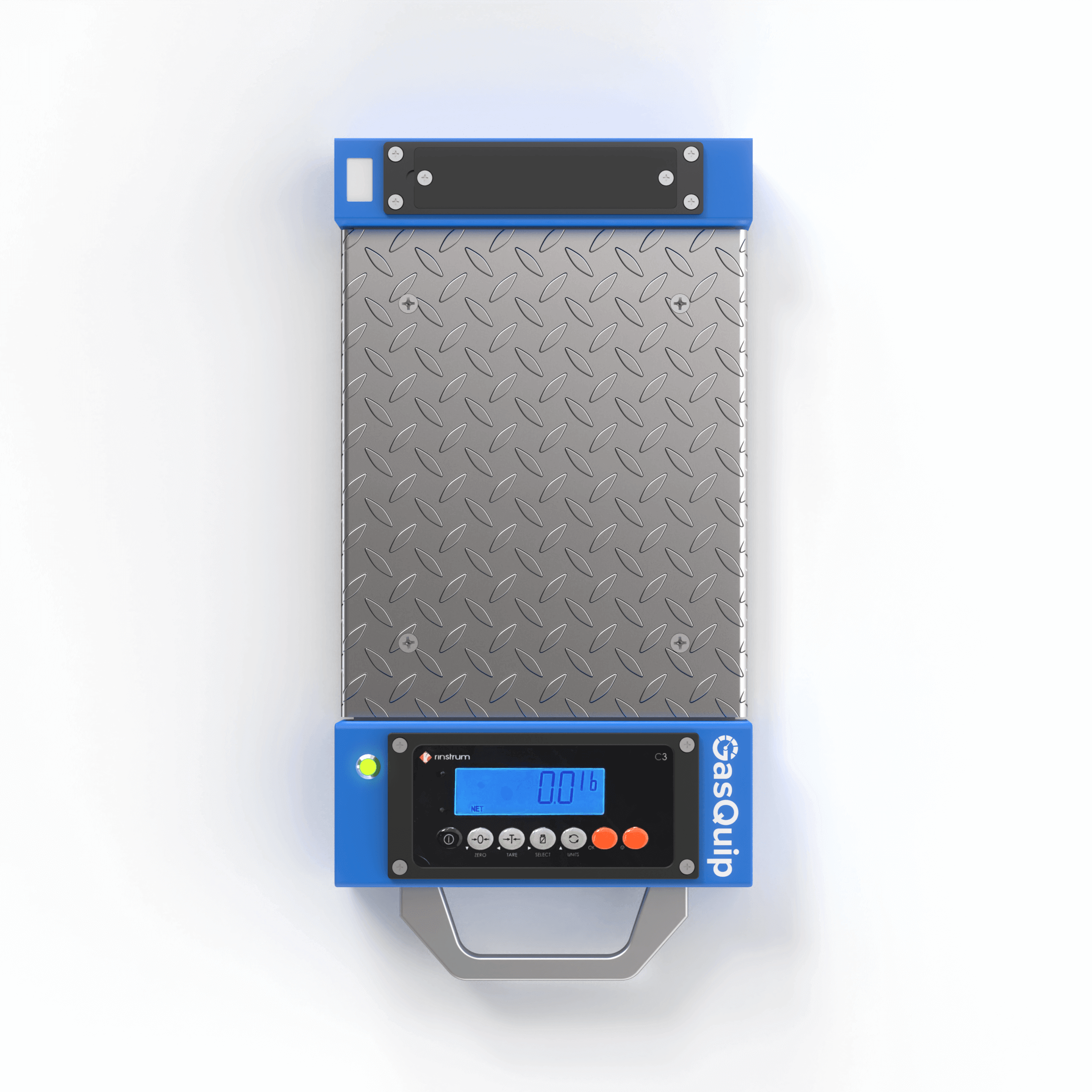

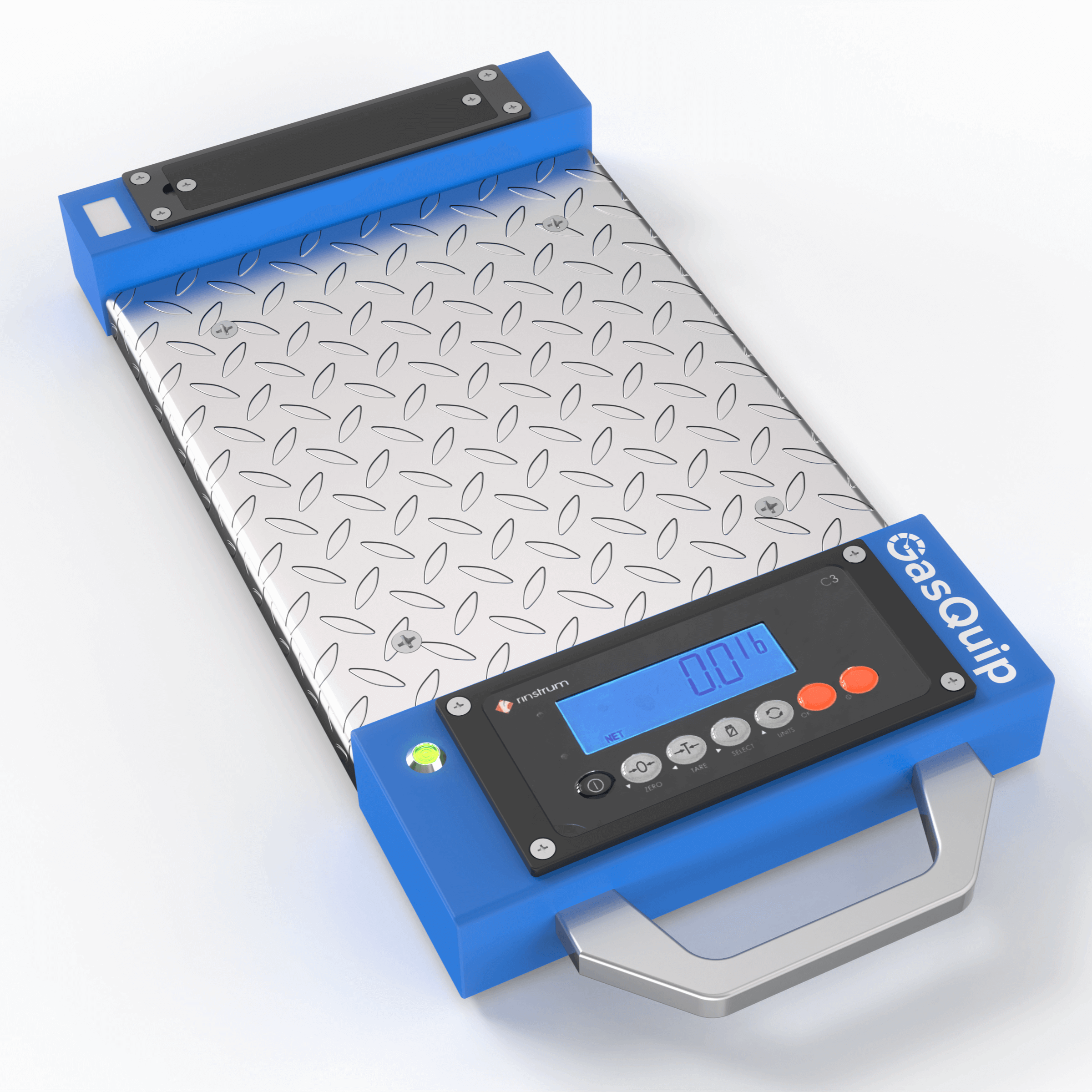

The GQ-CWS-V3 Gas Cylinder Scale V3 ensures accurate gas cylinder weight measurements either in-field or during inventory checks. Its low-profile, lightweight design, coupled with a rechargeable battery, offers enhanced portability. The optional rugged pelican case facilitates easy transportation. Features such as a 1″ high platform for rolling cylinders onto the scale, custom load cells with a rated accuracy of ±0.1 % full scale, and compliance with EPA & CARB standards make it a reliable choice for precise mass measurement in electrical transmission, distribution, manufacturing, and industrial sectors. Each scale comes with a calibration certificate traceable to the National Instrument of Standards & Technology (NIST).
Typically Ships: Within 1-2 Days
Includes: Scale, Li-ion Batteries, Charging Cable, & Instructions

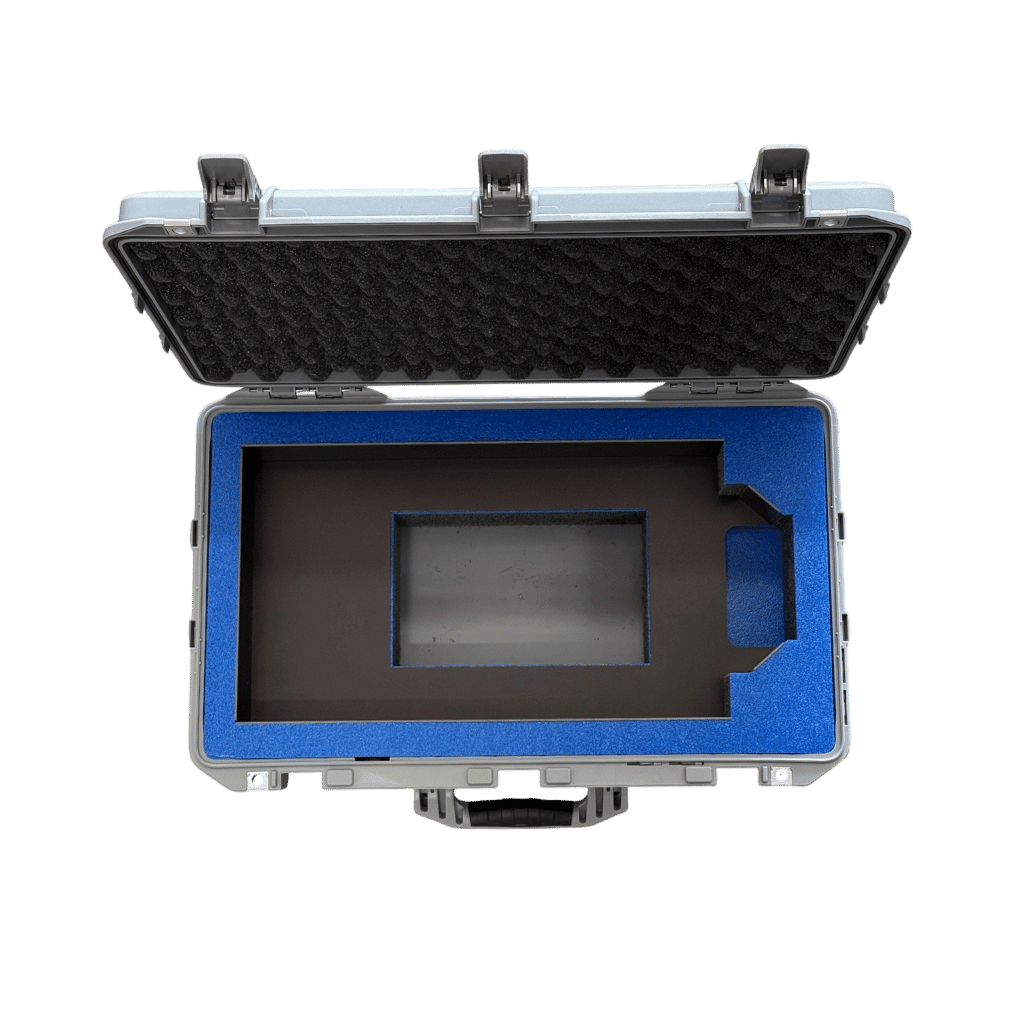

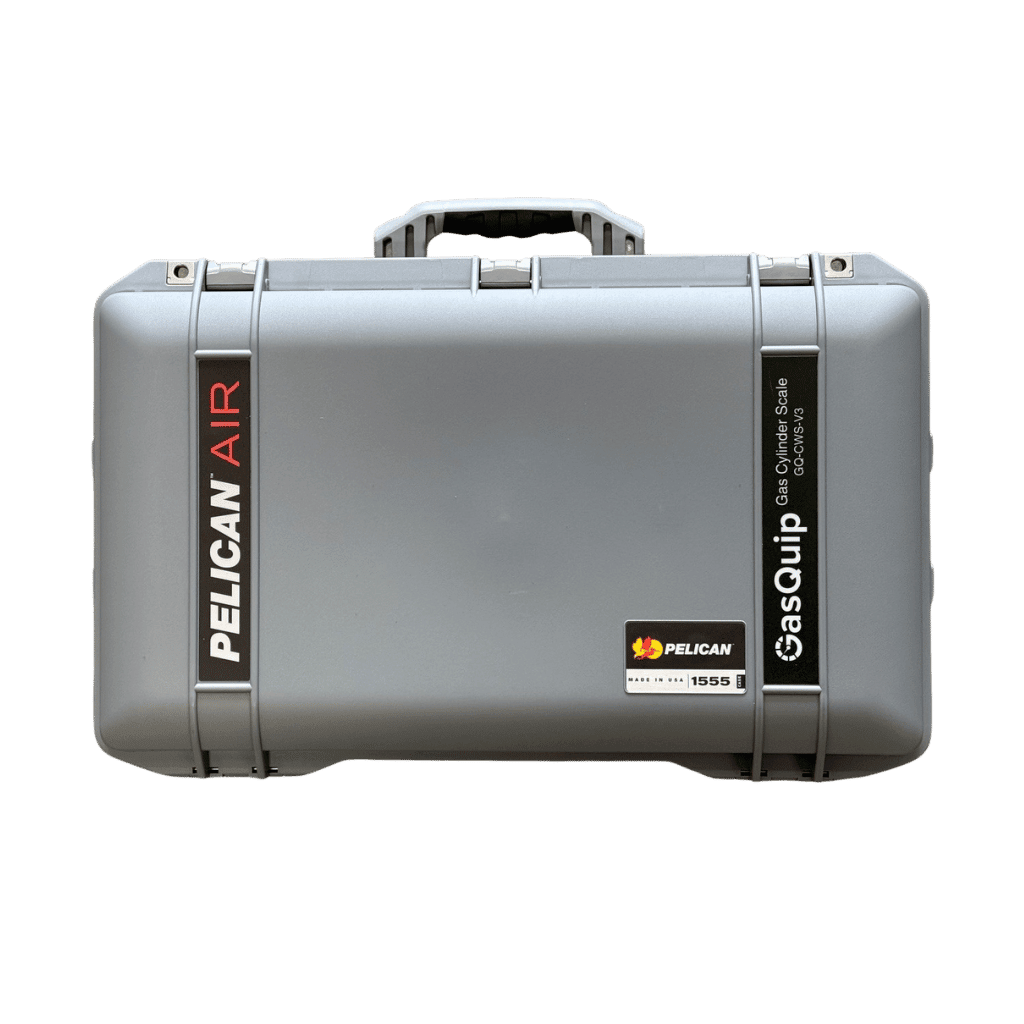

Optional: Custom Pelican Case
Price range: $750.00 through $2,749.99

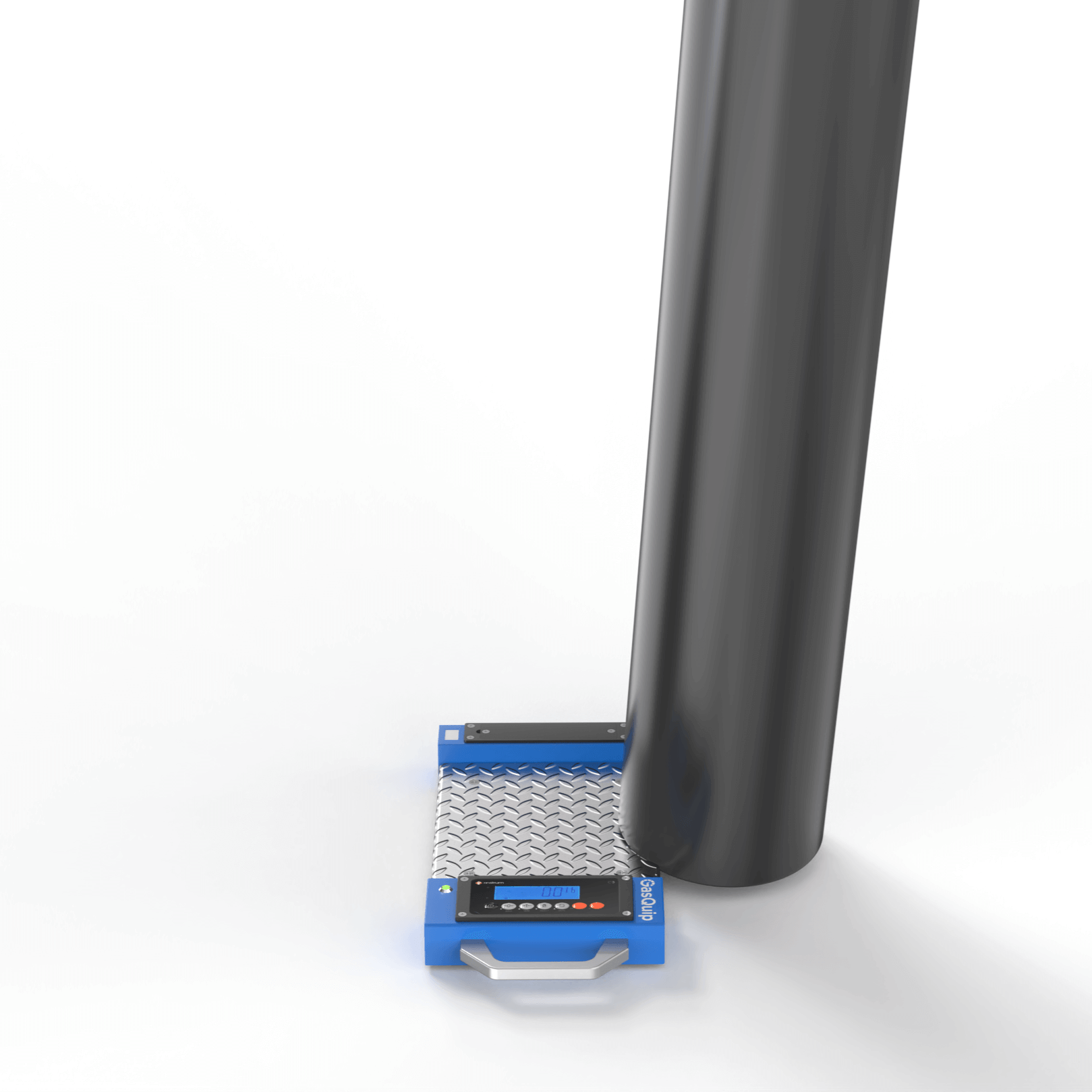

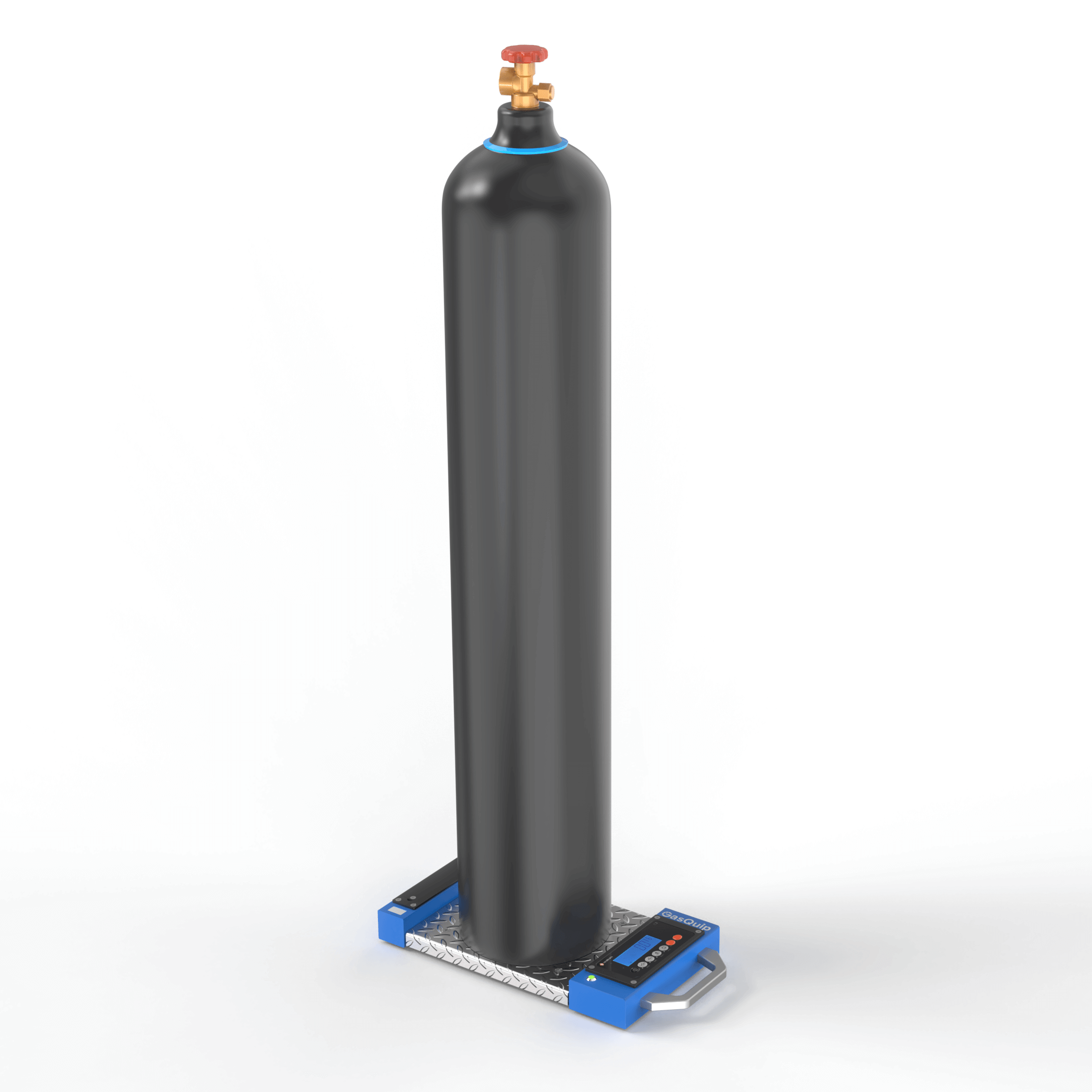

Full gas cylinders can weigh 220+ pounds. Let’s roll those cylinders onto the scale instead of lifting them by using a low profile platform
This cylinder scale & case takes up less room in your truck, and you won’t have to throw out your back just to get it out.
Report true gas usage with precision load cells designed with accuracy of ±0.1 % full-scale. Meets all EPA & CARB requirements for cylinder scales
GasQuip is the name electrical transmission and distribution professionals trust for mass measurement, thanks to our products’ reliability, technical standards, and backend support. We design our equipment to meet all of the latest governing regulations including CARB, EPA, & more.
| GENERAL | |
|---|---|
| Device Dimensions | 18″ x 14″ |
| Power Supply | Rechargeable Li-Ion |
| Operating Temperature | 0-60°C |
| Platform Dimensions | 12″ x 10″ |
| Weight | 15 lbs |
| Case Weight | 7 lbs |
| Case Dimensions | 22.0 × 14.0 × 8.0″ (Pelican Air 1525) |
| Accuracy (Full Scale) | ±0.1 % Full Scale |
| Accuracy (Weight) | ±.25 lb or ±.0.1kg |
| Capacity | 500 lbs |
| Calibration Interval | 1 Year |
Yes. The Gas Cylinder Scale V3 is compliant with EPA and CARB cylinder-scale requirements and ships with a calibration certificate traceable to NIST, so its measurements are defensible for SF6 emissions and mass-balance reporting.
The scale has a 500 lb capacity, which covers standard SF6 cylinders—including full 115 lb and 220 lb cylinders—plus the weight of a dolly or handling fixture if used.
Accuracy is rated at ±0.1% of full scale, or approximately ±0.25 lb (±0.1 kg). This precision supports true gas-usage reporting when filling or recovering SF6.
Each scale ships with a NIST-traceable calibration certificate. The recommended calibration interval is once per year.
No. The platform sits just 1" high, so heavy cylinders—which can weigh 220+ lbs—can be rolled onto the scale instead of lifted, reducing strain and injury risk in the field.

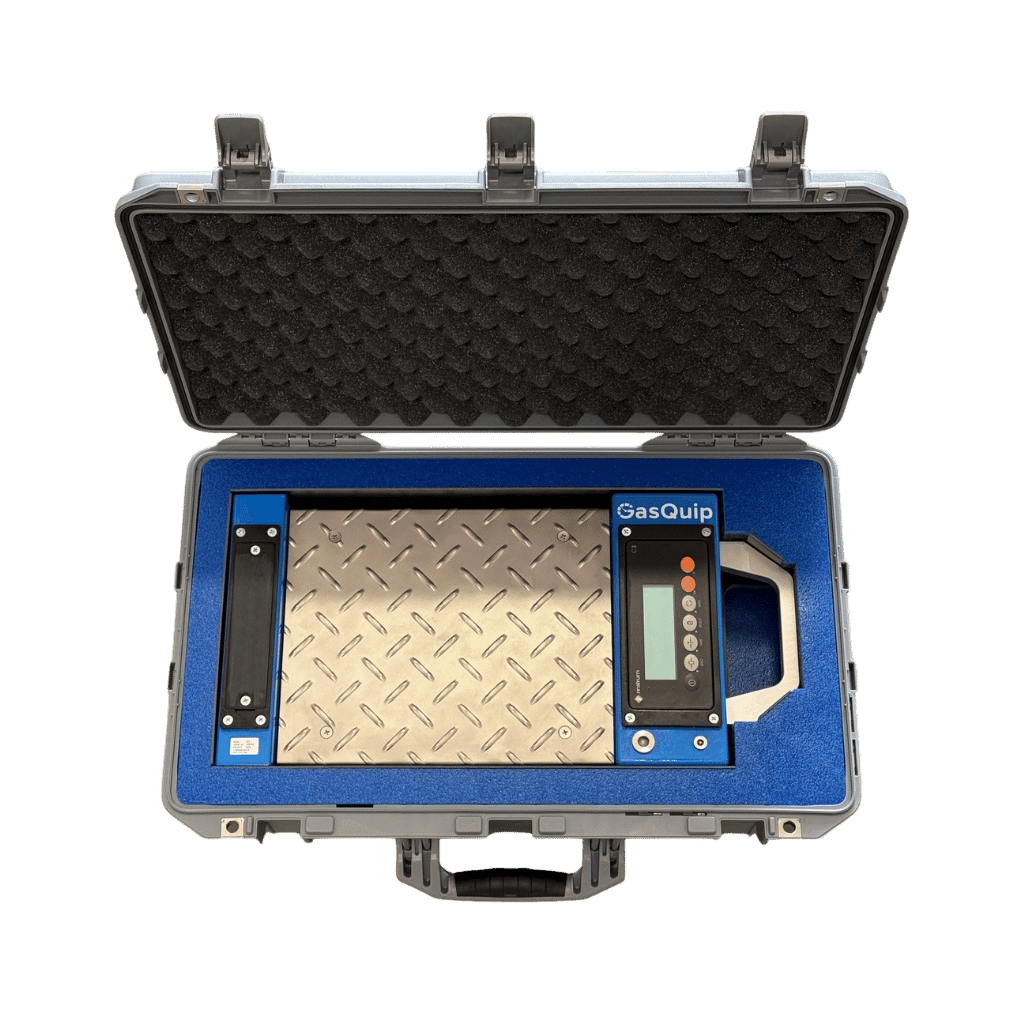

Each unit includes the scale, Li-ion batteries, charging cable, and instructions. An optional rugged Pelican Air 1525 case is available for transport. The scale weighs 15 lbs; the case adds 7 lbs. Units typically ship within 1–2 days.
Email us at sales@gasquip.com, or call us at (713) 955-3177 to speak with a knowledgeable specialist.
