SF6 Precision Pressure & Temperature Gauge

SKU GQ-PG-AKIT Category Gas Handling

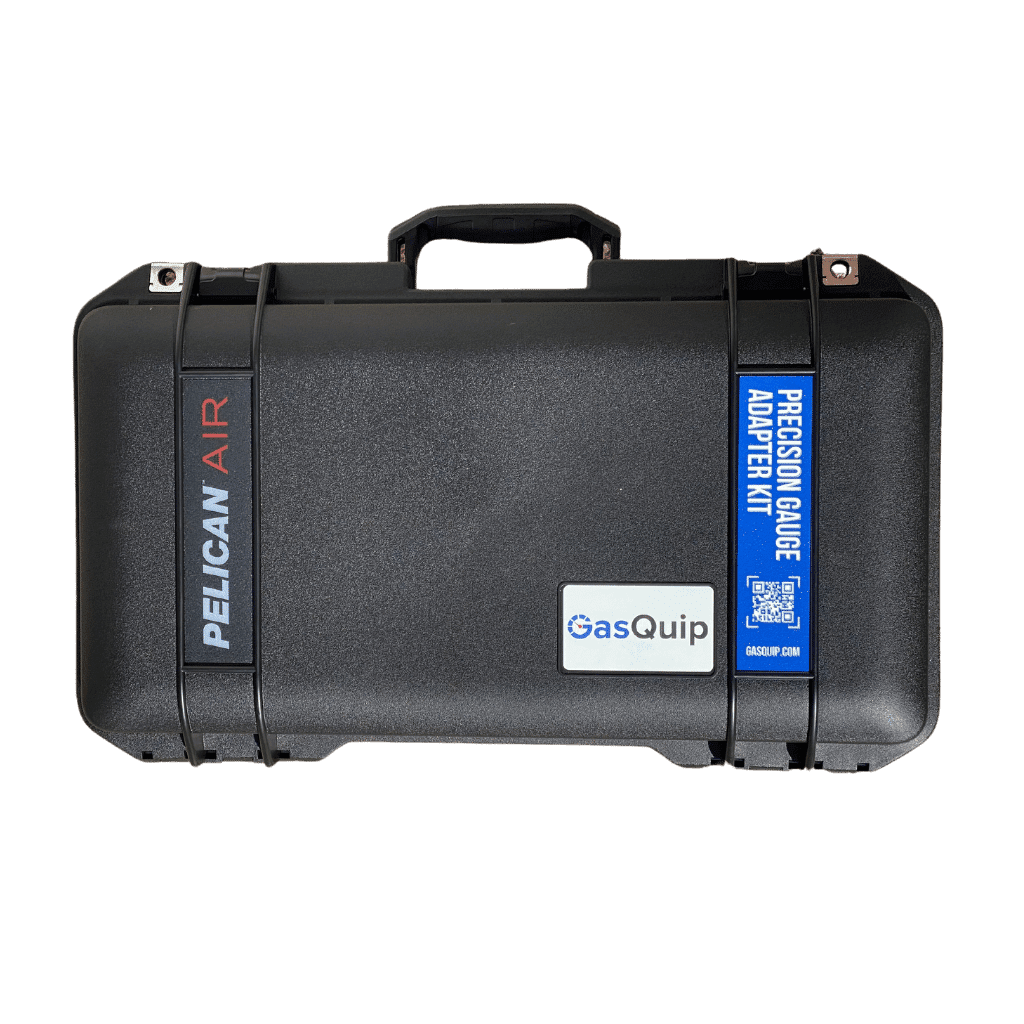

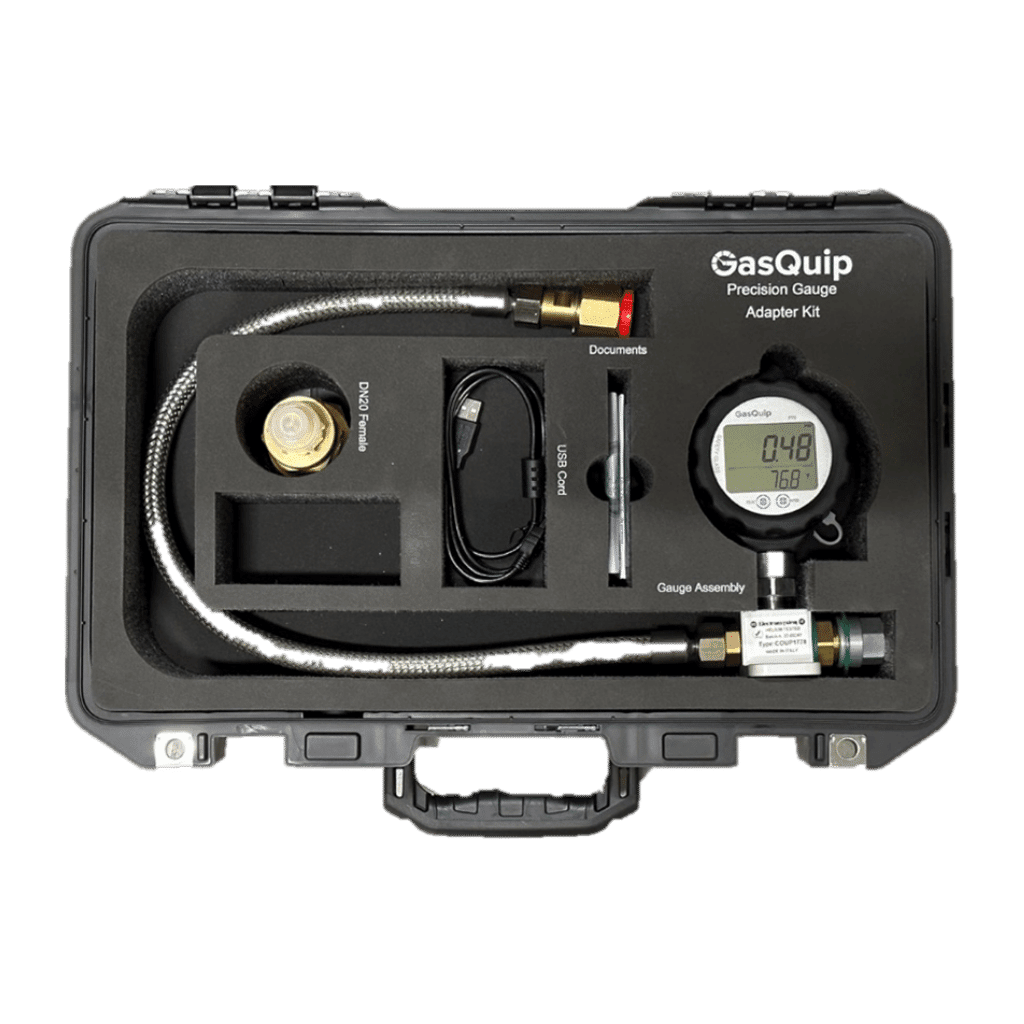

Specifically designed for CARB compliant SF6 gas handling, this kit is used to confirm that pressure and temperature indicators on an SF6 breaker are accurate anytime gas is moved in or out of the equipment.

Available on backorder

Safe & Precise SF6 Gas Reporting

CUSTOM FIRMWARE

Our customer software changes units automatically from PSI to mmHg when a transitioning from positive pressure to a vacuum. All units customizable.

HIGH ACCURACY MEETS REULATION

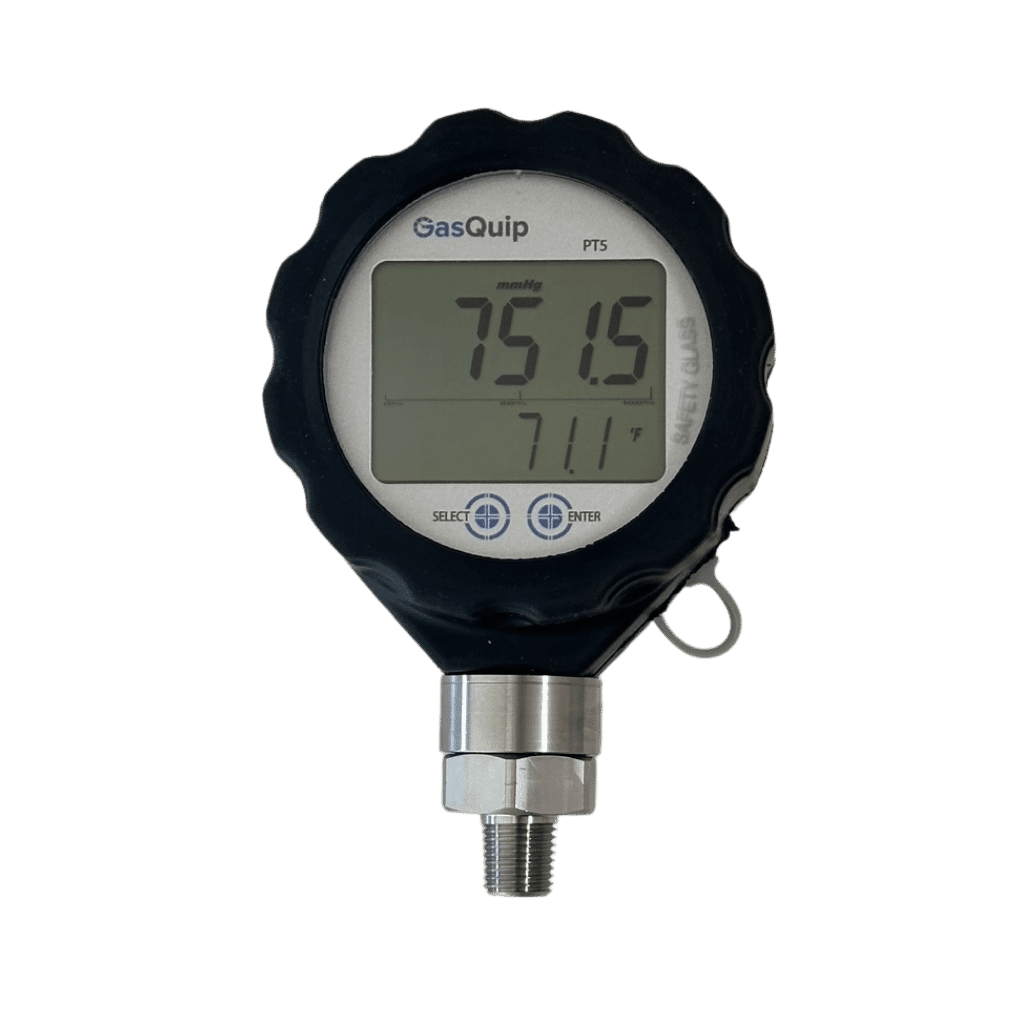

With a full-scale accuracy of ±0.05, the PT5 gauge far exceeds any current requirements for SF6 regulations.

RUGGED AND FIELD READY

Water-tight stainless-steel housing and rubber bumper case to protect the outside. No cheap plastic components that will break over time.

Industry Trusted

GasQuip is the name electrical transmission and distribution professionals trust for gas measurement, thanks to our products’ reliability, technical standards, and rugged build quality. We design our equipment to meet all of the latest governing regulations including CARB, EPA, & more.

SPECIFICATIONS

GENERAL
Device Dimensions	19.2 x 12.8 x 6.9”
Power Supply	5V, 2.5A Micro USB
Pressure Ranges	0...11 Bar Absolute (Other Ranges Available)
Accuracy	±0.05 %FS
Weight	10lbs
Adapters Materials	Brass and Aluminum
