FLEX – Modular SF6 Analyzer

SKU GQ-FLEX Category

Portable SF6 analyzer with swappable modules for quick calibration and maintenance. The “FLEX” features emission-free operation with the ability to pump back gas after measurement. The high contrast touch screen display is easy to see in sunlight and intuitive navigation makes operation simple. Interested in learning more? Reach out to us below.

Price Starts at 25k



SENSOR MODULES = FAST CALIBRATION

When your device needs calibration, sensor modules are sent to swap in, and you have no down time as a result.

ACCURATE & REPEATABLE TESTS

Measurements on SF6, SO2, and moisture that you can trust. Advanced sensors coupled high purity components ensure reliability for years to come.

SIMPLE OPERATION

The simplified touch screen interface makes operation painless. A high contrast display allows for use in the brightest environments.

“So far we’ve had no issues, and the guys seem to love how easy it is to run tests. The sensor modules were genius and we’re glad to be done with [the competition].”

“Our group loves how easy it is to run tests. The sensor modules were genius, really nice to not have to send it off for calibration.”

“We tested the FLEX on a gas manifold against two other brands of analyzers. The FLEX was the only one that got the H2O correct on the first test. All green lights for me.”

NO-HASSLE CALIBRATION

FLEX

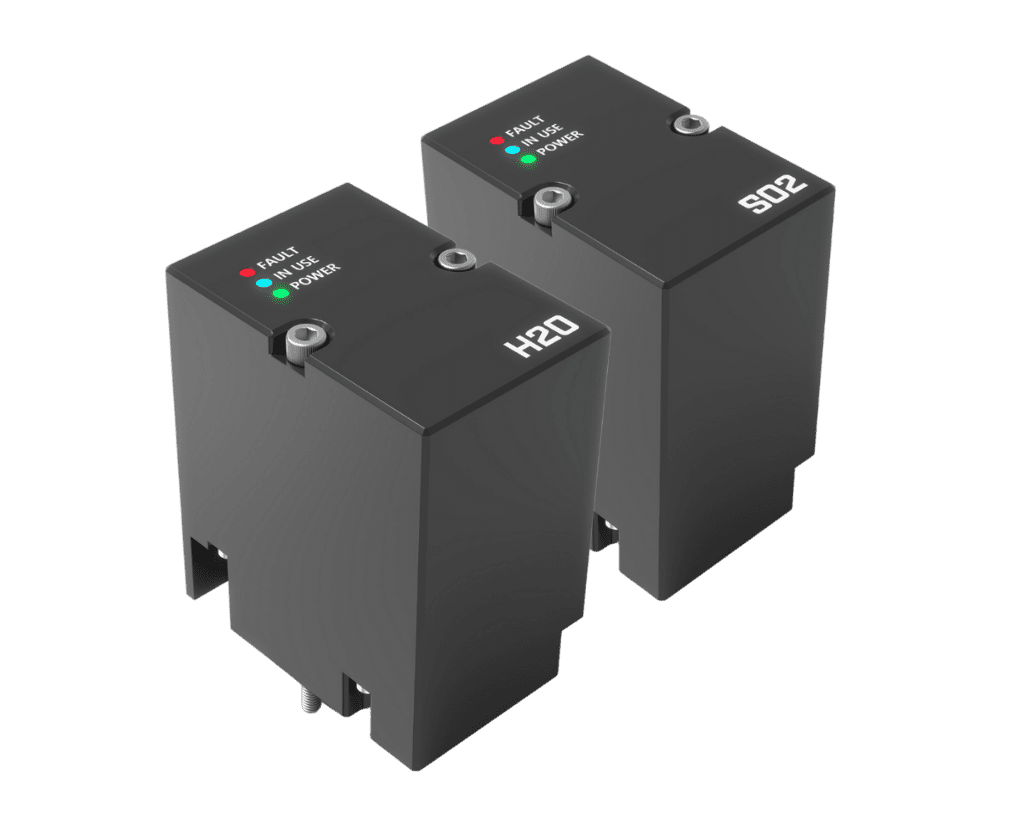

Sensor Modules

The FLEX is the first SF6 analyzer that can be quickly calibrated by the user thanks to our fast swapping sensor modules.

FLEX Instructions

ADVANCED BUT SIMPLE

FLEX Operation

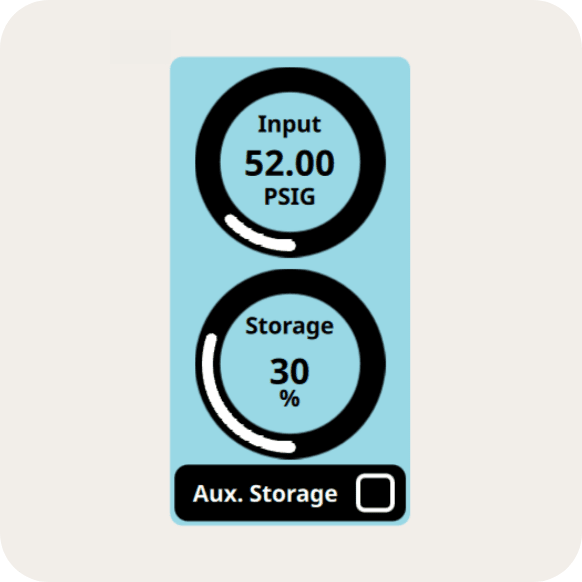

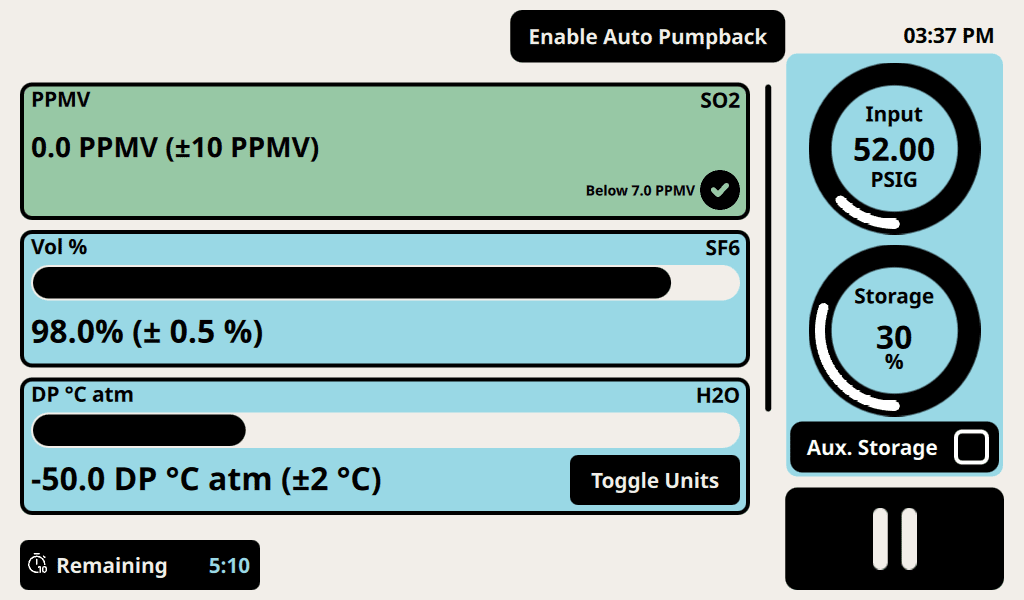

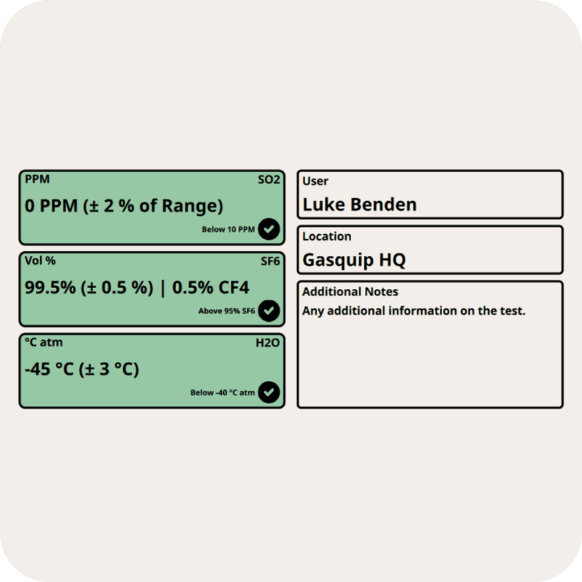

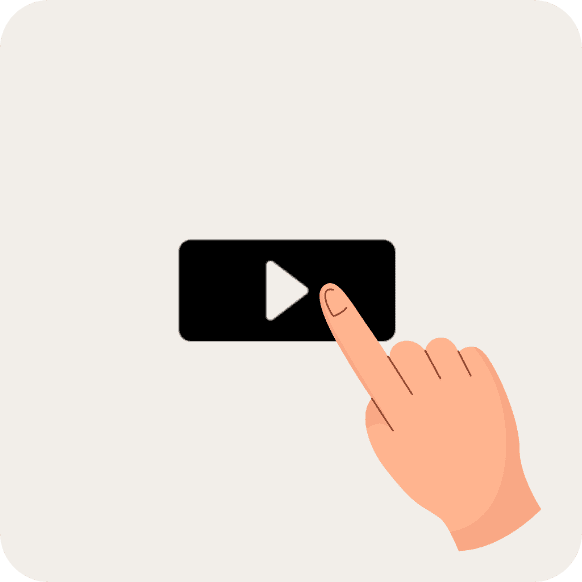

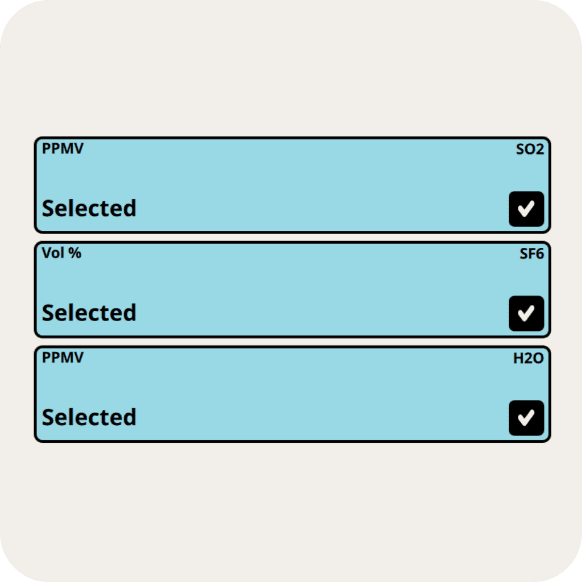

One of our goals was to make FLEX the easiest to use analyzer on the market, while maintaining advanced capabilities. Whether you’re testing one cylinder or 20 breakers, the system is easy to use and understand.

Special functions include:

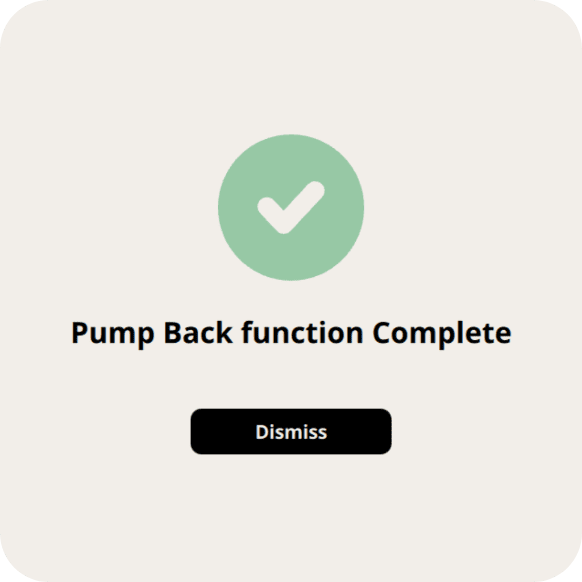

Pump Back, Evac Hose, Leak Check, Dry System, Custom User Thresholds, Data Logging/Exporting/Custom Formatting, Sunlight-Readable Display, Calibration Tracking.



Industry Trusted

GasQuip is the name electrical transmission and distribution professionals trust for gas analysis, thanks to our products’ reliability, technical standards, and customer support. We design our equipment to meet the needs of the people who will actually be using it, and carefully consider the features that our customer’s want and need.

Flex SF6 Analyzer

SPECIFICATIONS

GENERAL
Dimensions
27.4 × 15.1 × 11.8"
Weight
50 Lbs
Inlet Pressure
5-145 PSI
Touch Panel Size
7" Sunlight Readable
Sampling Time
~ 7 Minutes
Power Supply
120 / 240 V
Data Export
USB Port
Warranty
Standard 12 Months
STANDARD EQUIPMENET
6m sampling hose, DN8 & D20 Adapters
Power Cable
USB Stick for Data Export
Operating Manual
UNIQUE FUNCTIONS
Automatic Pumpback
Hose Evacuation
External Gas Storage Port
Set Pass/Fail Thresholds
Quick Swap Sensor Modules
Calibration Interval Tracking
SENSORS MODULES

H2O

SF6

SO2

Optional: CF4

Sensor Type

Heated Capacitive Polymer
Infrared
Electrochemical
Infrared

Accuracy

± 2 °C
± 0.5 %
± 2 %
± 1 %

Calibration Interval

1 Year
2 Years
1 Year
2 Years

Units

°C atm, °F atm, PPMw, PPMv
% SF6
PPMv
% CF4

Range

-50°C atm to +0°C atm
0-100%
0-500 PPMv
0.56-85%

ADDITIONAL INFORMATION

Warranty

12 Month Standard Warranty

GasQuip warrants the products it manufactures or distributes to be free of defects in material and workmanship under normal use and service when operated within the specified design limitations for a period of 12 months from date of initial shipment.  Under this Warranty, GasQuip will, at its discretion, repair or replace any component that upon examination by GasQuip or its duly authorized representatives proves to be defective during the warranty period provided the system is returned to the factory for inspection and repair shipping prepaid.  Improper or unauthorized maintenance, storage, repair, or alteration of any kind by personnel other than GasQuip or its duly authorized representatives may void all warranties.   Warranty may also be voided for misuse, neglect, accident, corrosion, and improper installation.  This Warranty is exclusive and in lieu of any and all other warranties of merchantability, fitness for a particular purpose, or any other warranty, expressed or implied, and all other liabilities and obligations on the part of GasQuip. GasQuip will not be liable for any other claims or damages, either direct, indirect, or consequential arising out of the use of its products.

Calibration Lab

All FLEX sensor modules are calibrated by RH Systems in Gilbert, Arizona.

As a NVLAP accredited laboratory, RH Systems is reassessed to ensure that our quality and practices maintain such standards (NVLAP Laboratory Code 600161-0). The National Institute of Standards and Technology (NIST) administers the National Voluntary Laboratory Accreditation Program (NVLAP). NVLAP accredits public and private laboratories based on evaluation of their technical qualifications and competence to carry out specific calibrations or tests. NVLAP provides an unbiased third-party evaluation and recognition of performance. NVLAP accreditation signifies that a laboratory has demonstrated that it operates in accordance with NVLAP management and technical requirements pertaining to quality systems; personnel; accommodation and environment; test and calibration methods; equipment; measurement tractability; sampling; handling of test and calibration items; and test and calibration reports (https://www.nist.gov/nvlap/about-nvlap).


Export Information

This device is available for international export. Please contact sales@gasquip.com if you have any specific questions.

FAQ
  1. What is an SF6 Analyzer?

    • An SF6 Analyzer is an instrument designed for analyzing the purity and composition of sulfur hexafluoride (SF6) in gas-insulated equipment. This device not only measures the concentration of SF6 but also quantifies various contaminants such as moisture and other gas by-products. These analyses are crucial for maintaining the health and efficiency of high-voltage electrical equipment.
  2. How does an SF6 Analyzer work?

    • A portable SF6 Analyzer draws a gas sample from equipment, using electrochemical sensors or infrared absorption to analyze SF6 concentration and purity. Designed for field use, it allows real-time, on-site testing with a user-friendly interface, ideal for quick diagnostics and inspections.
  3. What are the key features of the FLEX?

    • The FLEX is the only SF6 gas analyzer that is fully manufactured & serviced in the US. Not only that, it is the only analyzer that does not have to be sent back for calibration. Since the sensors are the things that need to be calibrated, we designed the FLEX to have quick swapping sensor modules that allows the customer to complete the calibration process in under a minute.
  4. In what applications is an SF6 Analyzer typically used?

    • SF6 Analyzers are primarily used in the electrical industry, particularly in the maintenance and testing of gas-insulated switchgear, circuit breakers, and transformers. They are essential tools for ensuring the proper functioning of high-voltage equipment, diagnosing potential problems, and preventing equipment failure due to contaminated or impure SF6 gas.
  5. How do you calibrate an SF6 Analyzer?

    • With the FLEX, it’s as easy as swapping in a new calibrated sensor module. The device automatically recognizes the new calibrated module and updates the system with the new calibration due dates.
  6. What maintenance is required for an SF6 Analyzer?

    • Regular maintenance of an SF6 Analyzer typically includes cleaning, inspection of components, firmware updates, and calibration checks. We also recommend flushing the system with pure nitrogen in order to clean out the plumbing and sensors from any previous contaminated tests.
  7. Can the SF6 Analyzer detect other gases?

    • Yes, besides measuring SF6 purity, our analyzers are capable of detecting and quantifying several contaminants and by-products in the gas, such as humidity, CF4, and SO2. This multi-gas detection capability is critical for comprehensive analysis and monitoring of gas-insulated electrical equipment.
  8. How is data from the SF6 Analyzer recorded and accessed?

    • Our SF6 Analyzer comes equipped with data logging capabilities, allowing for the storage and retrieval of measurement data. The data can be exported via the USB port and provided USB stick.
  9. What training is required to operate an SF6 Analyzer?

  • Operating an SF6 Analyzer requires basic training in handling SF6 gas and understanding the analyzer’s functions.
  1. How can I get a quote or request a demo for the FLEX?
